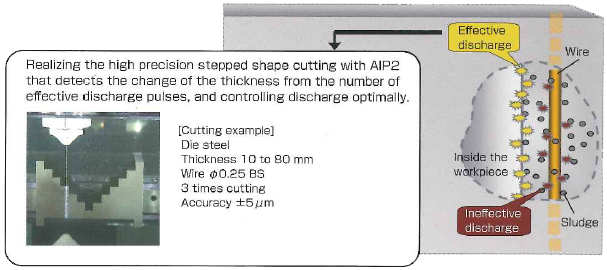

AIP2 (AI pilse control 2) to control the appopriate discharge, grasping the cutting situation by counting the number of effective discharge pulse contributing to cutting

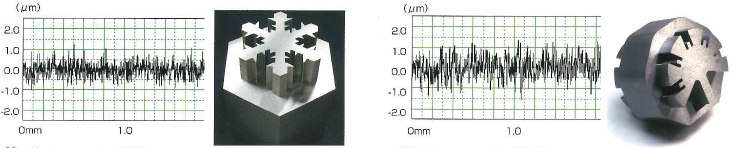

Surface roughness 0.30UmRa provided for the steel less that 60mm thickness by SF2 (Standard Power Supply for Skim cutting)

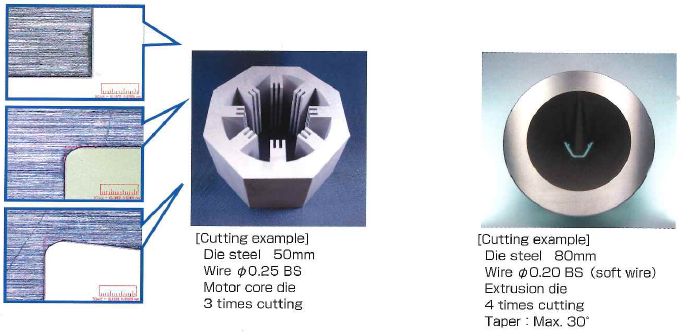

(Cutting example : SF2) Die Steel 40/60mm Wire 0.25 BS Die and Punch 5 times cutting Surface roughness 0.30UmRa	(Cutting example : SF2) Die Steel 20/40mm Wire 0.25 BS Die and Punch 3 times cutting Surface roughness 0.40UmRa

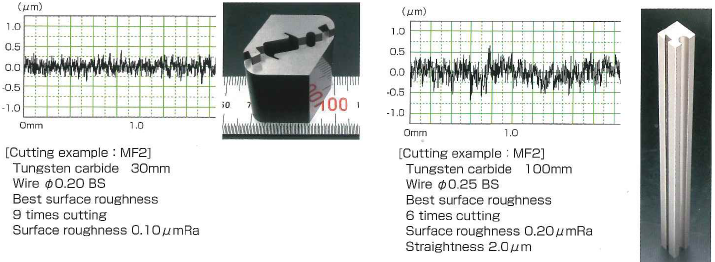

Best surface roughness 0.10umRa provided for the tungsten carbide less than 30mm thickness by MF2 (Optional Power Supply for Skim cutting)

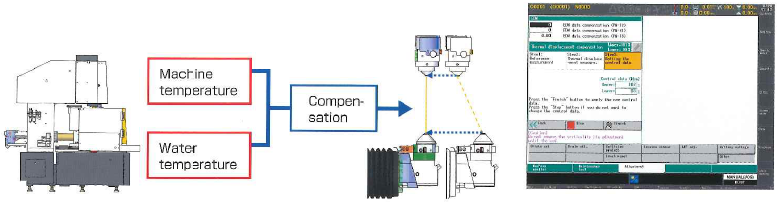

Tharmal displacement compensation function providing stable cutting (option)
Reducing the displacement of the upper and lower guide position caused by a temperature change Optimizing the amount of compensation depending on the user environment
Various shape compensation function providing stable cutting
Corner Shape Compensation Cutting time shortened by 20% as previous
Taper Cutting Compensation
Automatic compensation for different cutting amount between upper and lower surface of work piece With support point compensation of die guide providing high accuracy taper cutting

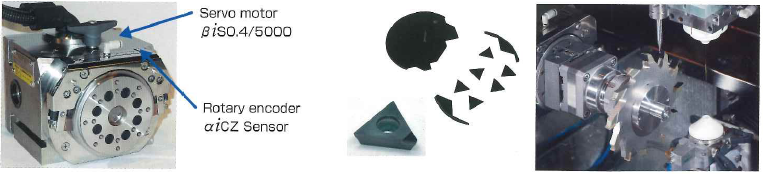

High presion rotary table ROBOCUT CCR extend range of application (option)
Full-closed control by FANUC Servo motor and rotary encoder Light weight and compact Superior cutting edge with PCD Cutting Power Supply
